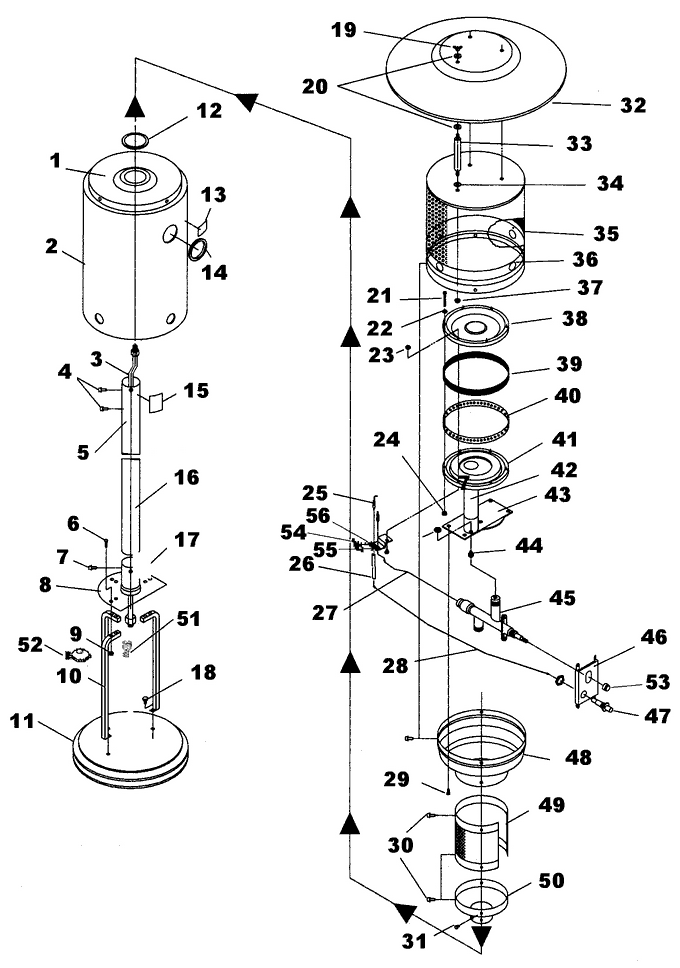

Запасные части
Kroll W 12 VA
| 1 |
Кожух бака |
HM06001 |
| 2 |
Корпус бака |
HM06002 |
| 3 |
Блок газовых труб |
HM07000(1) |
| 4 |
Подпорка шурупа |
029543 |
| 5 |
Подпорка |
HM03001(1) |
| 6 |
Болт подпорки |
HT08003(6) |
| 7 |
Стойка шурупа |
HM03004(8) |
| 8 |
Основание подпорки |
HM03002(1) |
| 9 |
Гайка подпорки |
HT08002(6) |
| 10 |
Корзина подпорки |
HM04000(3) |
| 11 |
Цилиндрический базовый блок |
HM05000(1) |
| 12 |
Маленькое резиновое кольцо |
HR06004 |
| 13 |
Сигнализация |
HC06005(1) |
| 14 |
Большое резиновое кольцо |
HR06003(1) |
| 15 |
Ручной клапан |
HC03003(1) |
| 16 |
Movable post |
HM03000-1(1) |
| 17 |
Post holder |
HM03005(1) |
| 18 |
Square stopper bolt |
HT08001(3) |
| 19 |
Wing nut |
029007 |
| 20 |
Reflector washer |
HT02011(3) |
| 21 |
Burner ring bolt |
HT02016(6) |
| 22 |
Burner ring washer |
HT02017(6) |
| 23 |
Burner ring nut |
HT02018 |
| 24 |
Burner ring nut |
HT02018 |
| 25 |
Elektrode |
005241 |
| 26 |
Wire protection sleeve |
035939 |
| 27 |
Thermocouple |
005243 |
| 28 |
ignition wire |
005242 |
|
ignition wire |
005170 |
| 29 |
Burner Основание bolt |
HT02026(4) |
| 30 |
Self tapping screw |
HT02005(12) |
| 31 |
Клапан bracket nut |
HT02006(1) |
| 32 |
Reflector |
000185 |
| 33 |
Reflector support bolt |
033336 |
| 34 |
Reflector washer |
HT02011(3) |
| 35 |
Flame screen |
039934 |
| 36 |
Wire mesh |
HS02015(1) |
| 37 |
Burner ring nut |
HT02018(6) |
| 38 |
Burner ring Колпачек |
HM02019(1) |
| 39 |
Burner ring |
HS02021 |
| 40 |
Burner ring mesh |
HS02020(1) |
| 41 |
Burner ring Основание |
HM02037(1) |
| 42 |
Air mix pipe |
HM02051(1) |
| 43 |
Square plate |
HM02048(1) |
| 44 |
Injector |
005244 |
| 45 |
Gas Клапан Контроллер |
005239 |
| 46 |
Клапан main plate |
HS02055(1) |
| 47 |
Spark |
005240 |
| 48 |
Burner housing Основание |
HM02029(1) |
| 50 |
Air mix Основание |
029705 |
| 51 |
Tilt controler |
035635 |
| 52 |
Pressure regulator |
040194 |
| 53 |
Rotary knob |
029662 |
| 54 |
Wind plate |
HS030048SS01 |
| 55 |
Clip |
HM030043ZN01 |
| 56 |
Ignition bracket |
HS030015SS01 |
|
